Billing Entity Management via Odoo #54

New issue

Open

opened 2025-05-07 12:52:17 +00:00 by tobru · 0 comments

tobru commented

2025-05-07 12:52:17 +00:00

Owner

Stories

As a user, I want to connect my organization to a billing address

As the system, I want to sync billing entity data with Odoo so that this information stays consistent.

We need to sync billing entity data in the Portal with contact information in Odoo (called "VSHN Central"), where Odoo is the source of truth.

A classic two-way sync, where Odoo takes precedence.

Implementation Notes

The Odoo API

The Odoo API is accessible either via XMLRPC or JSONRPC. We can either work directly with one of these APIs, or reuse an existing library. Example of how to work with the Odoo API: https://servala.app.codey.ch/servala/website/src/branch/main/hub/services/odoo.py. This uses https://pypi.org/project/OdooRPC/ which is a bit outdated. It's probably better to either use https://pypi.org/project/odoo-client-lib/ or plain XMLRPC (Example: https://github.com/vshn/conferenceli/blob/main/contactform/odoo_client.py).

We will need to read and write more data from and to Odoo in the future, so it makes sense to have the Odoo connection implemented in a reusable way.

Make the Odoo connection configurable via environment variables:

ODOO_URL=https://preprod.central.vshn.ch/
ODOO_DB=VSHNPreProd
ODOO_USERNAME=CHANGEME
ODOO_PASSWORD=CHANGEME

Billing entity specific

A billing entity in Servala Portal represents two records in the Odoo model res.partner:

A record with the field company_type set to company
A record with the following field configuration:
- company_type=person
- type=invoice
- parent_id=company_id

This means:

When creating a billing entity in Servala, it must create these two records in Odoo and make sure the portal keeps track of these two records. See also fd065b51ed/apiserver/billing/odoostorage/odoo/odoo16/odoo16.go (L311-L318) to get an idea how this is done in APPUiO.
The portal regularly imports (syncs) billing entities from Odoo into Servala portal to make them available. How to handle records which are deleted in Odoo?
Triggering of the sync should happen regularly (cron) and when certain user actions happen, like when a new organization gets created.
Not all information has to be synced, only the ones important for listing and syncing. Detail information should be directly retrieved from Odoo when accessing it.

User flow:

The user must choose a billing entity when creating an organization. Either an existing one, or a new one.
Changing the billing entity after creating is not to be supported yet, this is coming later
We call this "Billing Address" in the frontend

Access control:

A user must only see billing entities which match the following criteria:
- The user is the creator of the record
- The users' email address matches with a contact related to the company_type set to company. This means we have to query Odoo for the email address in the res.partner model ([["email","=","email@example.com"]]) and when a contact is returned check of the parent_id of this contact matches the company of this billing entity. (To be discussed how to effectively do that - including caching)
Alternative: We implement the same system as we started with in organizations and use roles. A user is then assigned a role in the billing entity. And we could sync the access to billing entities with contacts from Odoo to begin with. (We don't want existing VSHN customers to have to create a new billing address, that is bad user experience and duplicates data).

More notes:

For now, we only allow creating, listing and viewing a billing entity, updating and deleting is coming later
We more or less resemble what we already do in the APPUiO control API: https://kb.vshn.ch/appuio-cloud/references/architecture/control-api-billing-entity.html

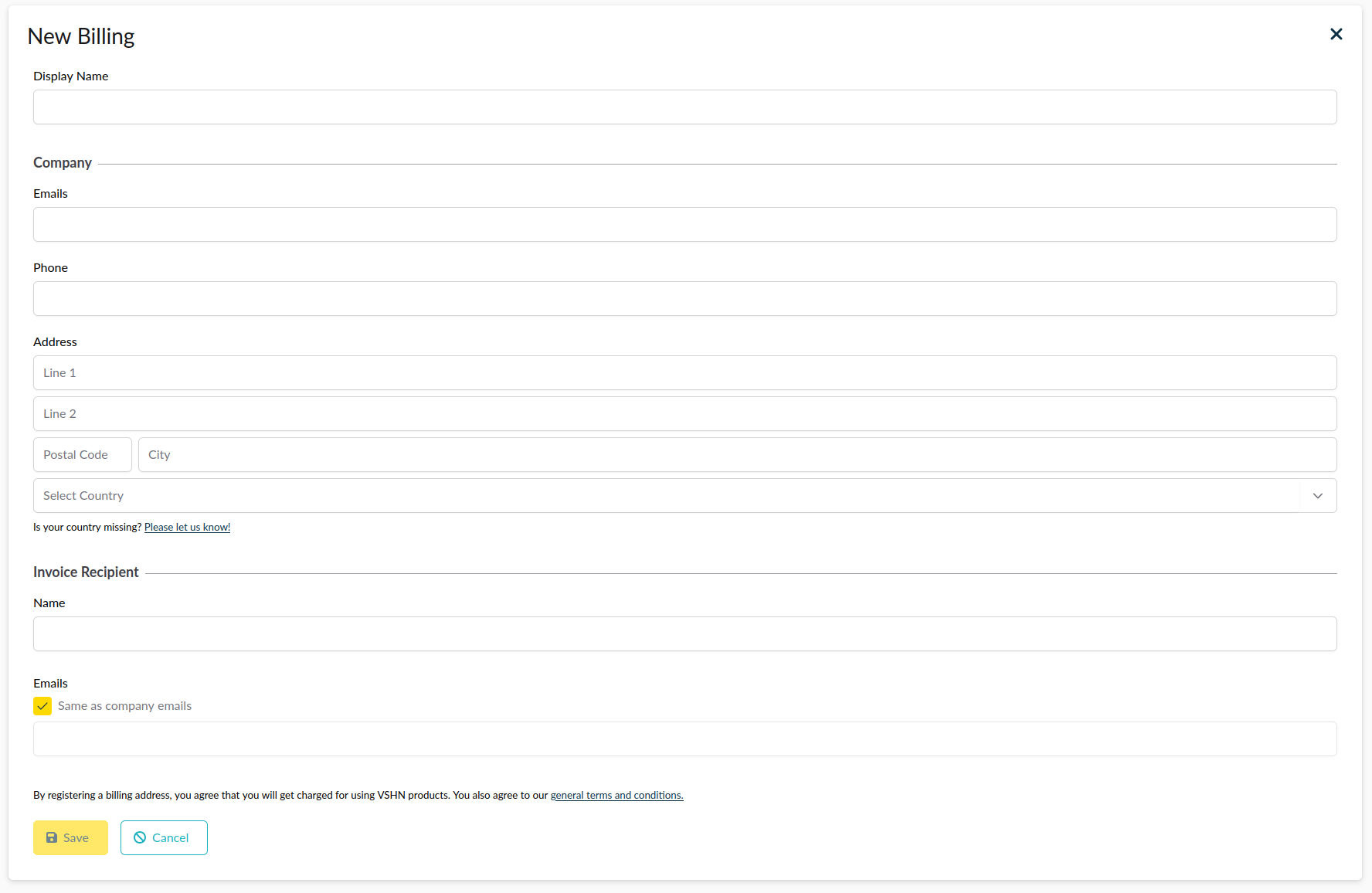

This is how the creation screen looks like in APPUiO portal today:
